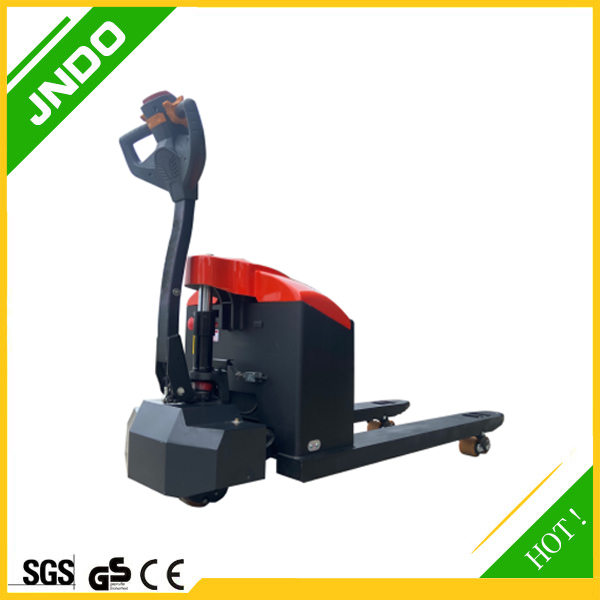

Fully electric pallet truck

Product specification :

Parameter	category			Pallet Truck
	1	Model		Truck
	2	Operation mode		Fully electric
	3	Rated load	kg	3000
	4	Load center distance	mm	600
	5	Wheelbase	mm	1150/1220
Weight	6	Total weight(Battery not included)	kg	155(model:550) 158.5(model:685)
Wheel	7	tire type		Polyester iron core
	8	tire size-driving wheel	mm	Φ160*55
	9	tire size-front wheel	mm	80*70
	10	Training wheel size	mm	80*30(Optional)
	11	Number of wheels		1*2/4
Size	12	Lifting height	mm	200
	13	Min height of fork	mm	85
	14	Fork inner width	mm	365/230
	15	Fork length	mm	1180
	16	Min ground distance	mm	30
	17	Min turning radius	mm	1550
Performance	18	Running speed Fully load/No load	Km/h	4/4.5
	19	Lifting speed Fully load/No load	Mm/s	45/40
	20	Descending speed Fully load/No load	Mm/s	65/60
	21	Max climbing speed Fully load/No load	%	15%
Motor and battery	22	Driving motor power	V/Kw	48V/1.8
	23	Lifting motor power	V/Kw	48V/0.8
	24	Battery pack voltage/capacity	V/Ah	Lead-acid battery 48/20 or 48/32 Lithium battery 38/60
	25	Battery weight	Kg	Lead-acid battery 20A 25KG 32A 35KG Lithium battery 30A 10KG 60A 20KG
Total size	26	Electronic control model		JWH-JGK001
	27	Total Length of car	mm	1780
	28	Total Width of car	mm	695/560
	29	Total height of car	mm	700/1260(Included handle height)

Pallet Truck
