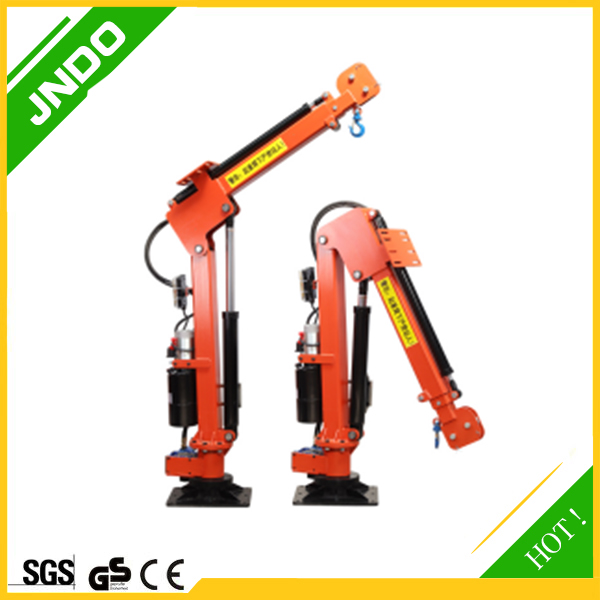

Electric hydraulic crane

Capacity

Column

One-section arm

Two-section arm

Three-section arm

1ton

12V/24V/220V

100*100,6mm

100*100,6mm

Length is 1.45m,

Max height is 2.5m

Lifting capacity is 1 ton

85*85,6mm,

Length is 2.25m,

Max height is 3m

Lifting capacity is 500kg

63*63mm,6mm

Length is 3m

Max height is 3.5m

Lifting capacity is 200kg

2ton

12V/24V/220V

120*120

120*120,8mm

Length is 1.45m,

Max height is 2.4m

Lifting capacity is 2 ton

100*100,6mm,

Length is 2.25m,

Max height is 2.9m

Lifting capacity is 1ton

85*85mm,6mm

Length is 3m

Max height is 3.4m

Lifting capacity is 500kg
